ATV ( All Terrain Vehicle )

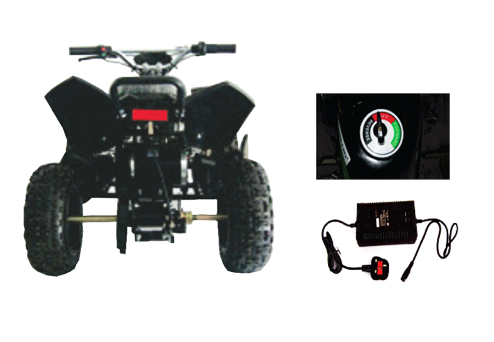

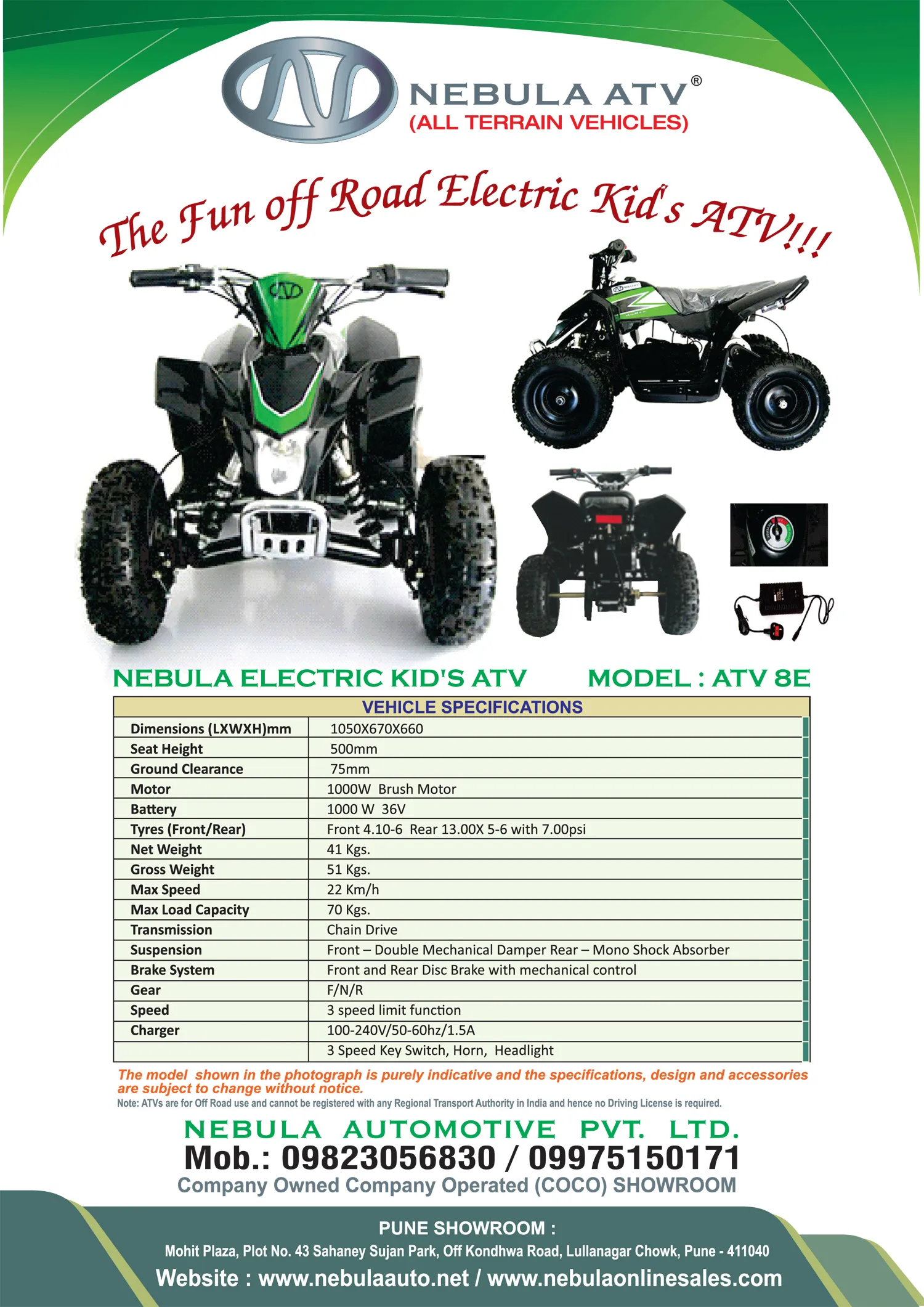

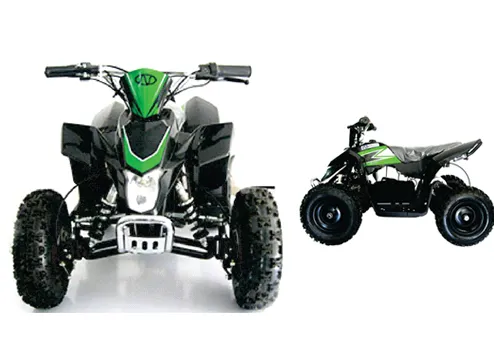

ELECTRIC KID'S ATV
Vehicle Specifications
Dimensions ( LXWXH ) mm 1050 X 670 X 660
Seat Height 500mm
Ground Clearance 75mm
Motor 1000W Brush Motor
Battery 1000W 36V
Tyres (Front / Rear) Front 4.10 - 6 Rear 13.00 X 5 - 6 with 7.00psi
Net Weight 41 Kgs.
Gross Weight 51 Kgs.
Max Speed 22 Km / h
Max Load Capacity 70 Kgs.
Transmission Chain Drive
Suspension Front - Double Mechanical Damper Rear - Mono Shock Absorbe
Brake System Front and Rear Disc Brake with mechanical control
Gear F / N / R
Speed 3 speed limit function
Charger 100 - 240V / 50 - 60hz / 1.5A
  3 Speed Key Switch, Horn, Headlight

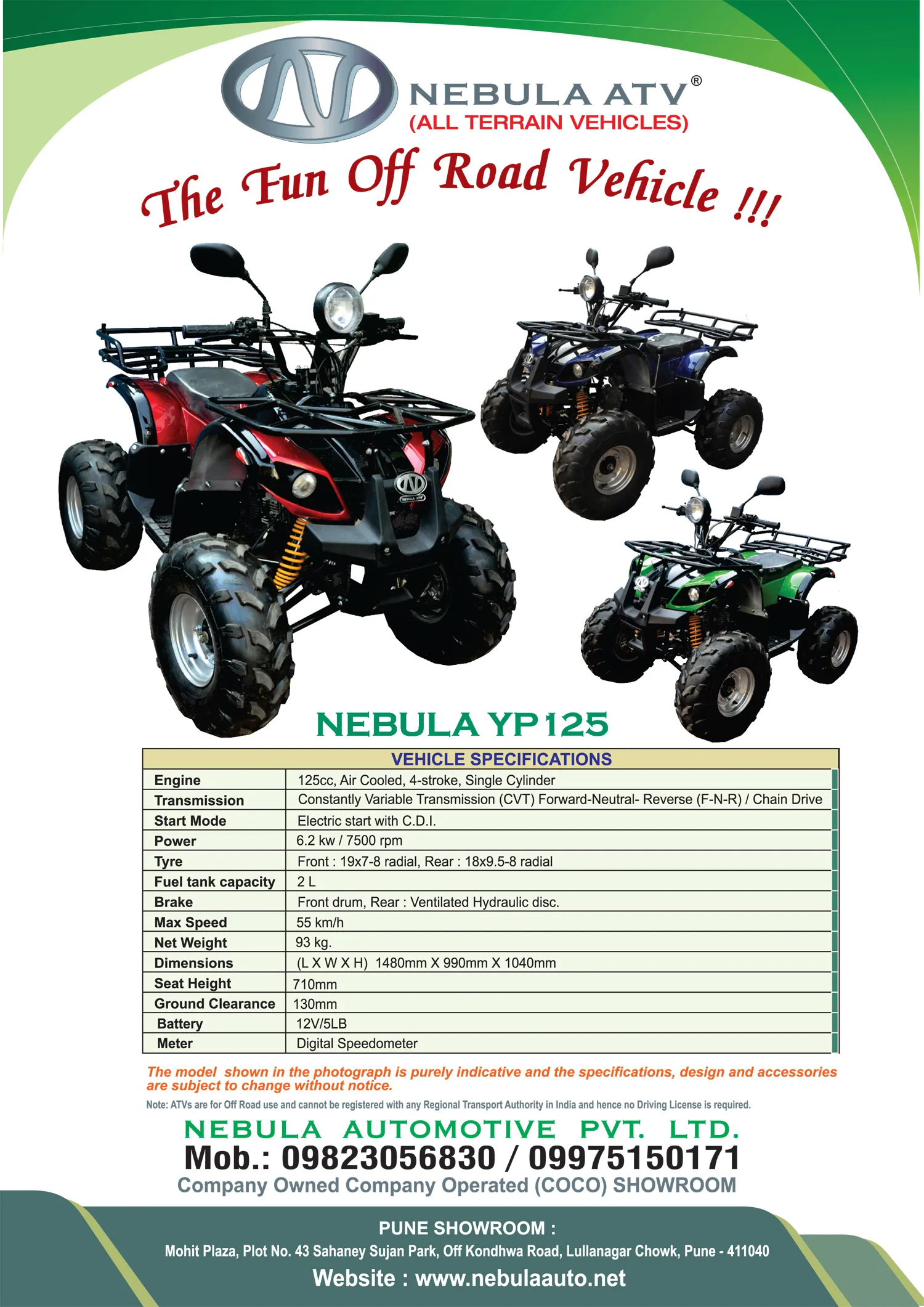

YP 125
Vehicle Specifications
Engine 125cc, Air Cooled, 4 - stroke, Single Cylinder
Transmission Constantly Variable Transmission (CVT) Forward - Neutral - Reverse ( F - N - R ) / Chain Drive
Start Mode Electric start with C.D.I.
Power 6.2 kw / 7500 rpm
Tyre Front : 19 x 7 - 8 radial, Rear : 18 x 9.5 - 8 radial
Fuel tank capacity 2 L
Brake Front drum, Rear : Ventilated Hydraulic disc.
Max Speed 55 km / h
Net Weight 93 kg.
Dimensions (L X W X H) 1480mm X 990mm X 1040mm
Seat Height 710 mm
Ground Clearance 130 mm
Battery 12V / 5LB
Meter Digital Speedometer

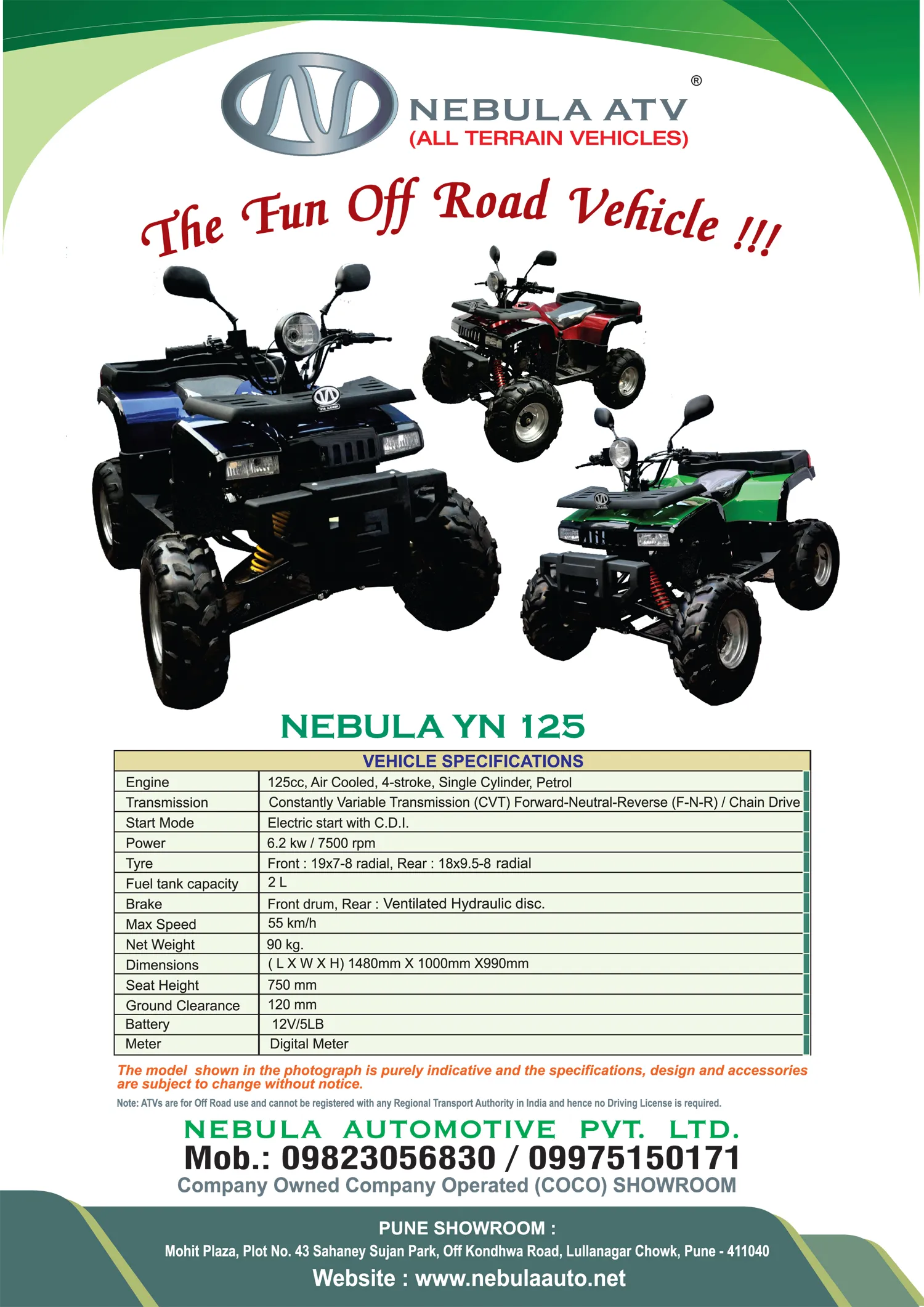

YN 125
Vehicle Specifications
Engine 125cc, Air Cooled, 4-stroke, Single Cylinder, Petrol
Transmission Constantly Variable Transmission (CVT) Forward - Neutral - Reverse ( F - N - R ) / Chain Drive
Start Mode Electric start with C.D.I.
Power 6.2 kw / 7500 rpm
Tyre Front : 19 x 7-8 radial, Rear : 18 x 9.5 - 8 radial
Fuel tank capacity 2 L
Brake Front drum, Rear : Ventilated Hydraulic disc.
Max Speed 55 km / h
Net Weight 90 kg.
Dimensions ( L X W X H ) 1480mm X 1000mm X 990mm
Seat Height 750 mm
Ground Clearance 120 mm
Battery 12V / 5LB
Meter Digital Meter

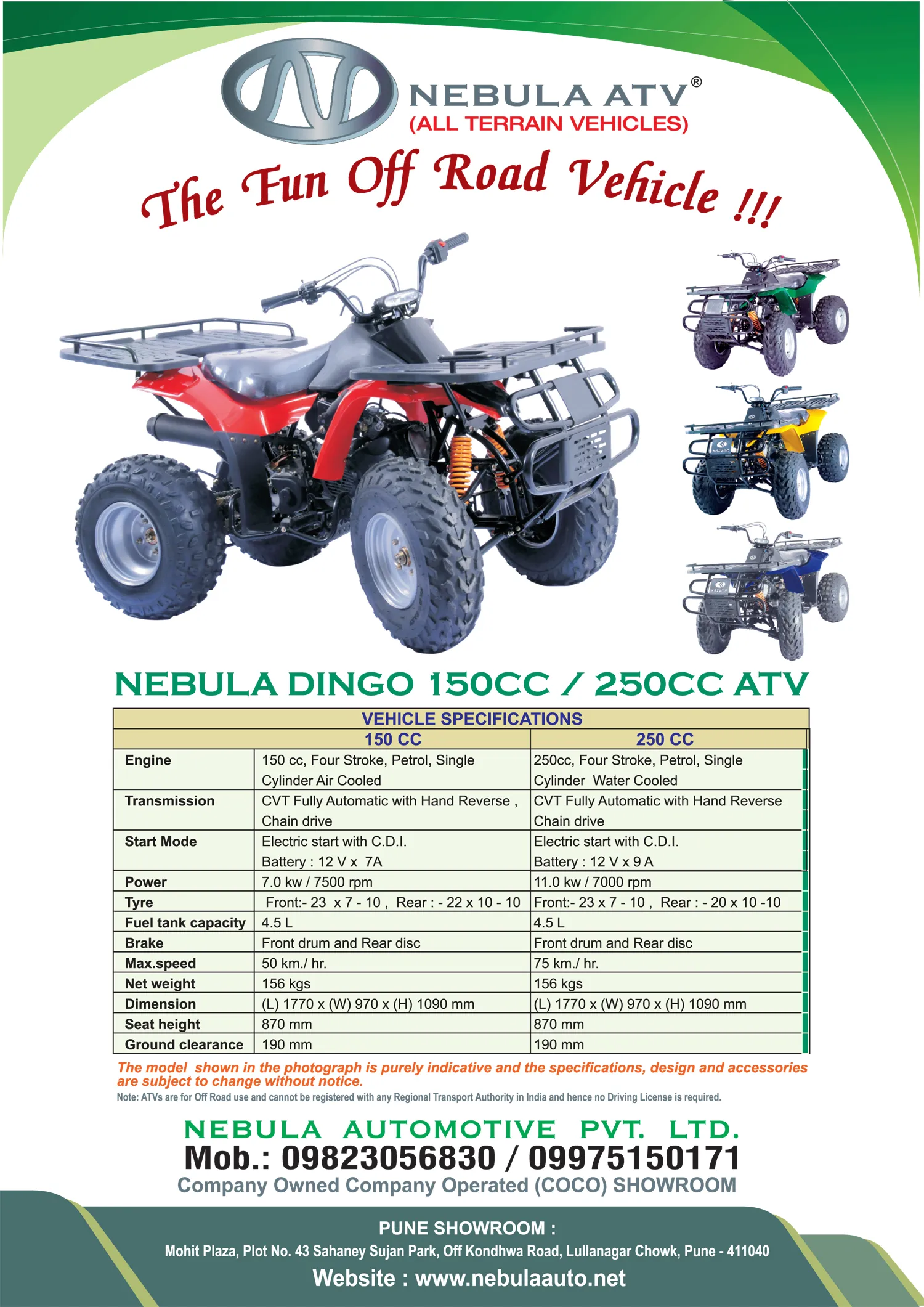

Dingo 150
Vehicle Specifications
  150 CC 250 CC
Engine 150 cc, Four Stroke, Petrol, Single Cylinder Air Cooled 250cc, Four Stroke, Petrol, Single Cylinder Water Cooled
Transmission CVT Fully Automatic with Hand Reverse , Chain drive CVT Fully Automatic with Hand Reverse Chain drive
Start Mode Electric start with C.D.I.
Battery : 12 V x 7A
Electric start with C.D.I.
Battery : 12 V x 9 A
Power 7.0 kw / 7500 rpm 11.0 kw / 7000 rpm
Tyre Front:- 23 x 7 - 10 , Rear : - 22 x 10 - 10 Front:- 23 x 7 - 10 , Rear : - 20 x 10 -10
Fuel tank capacity 4.5 L 4.5 L
Brake Front drum and Rear disc Front drum and Rear disc
Max. Speed 50 km./ hr. 75 km./ hr.
Net Weight 156 kgs 156 kgs
Dimension (L) 1770 x (W) 970 x (H) 1090 mm (L) 1770 x (W) 970 x (H) 1090 mm
Seat Height 870 mm 870 mm
Ground Clearance 190 mm 190 mm

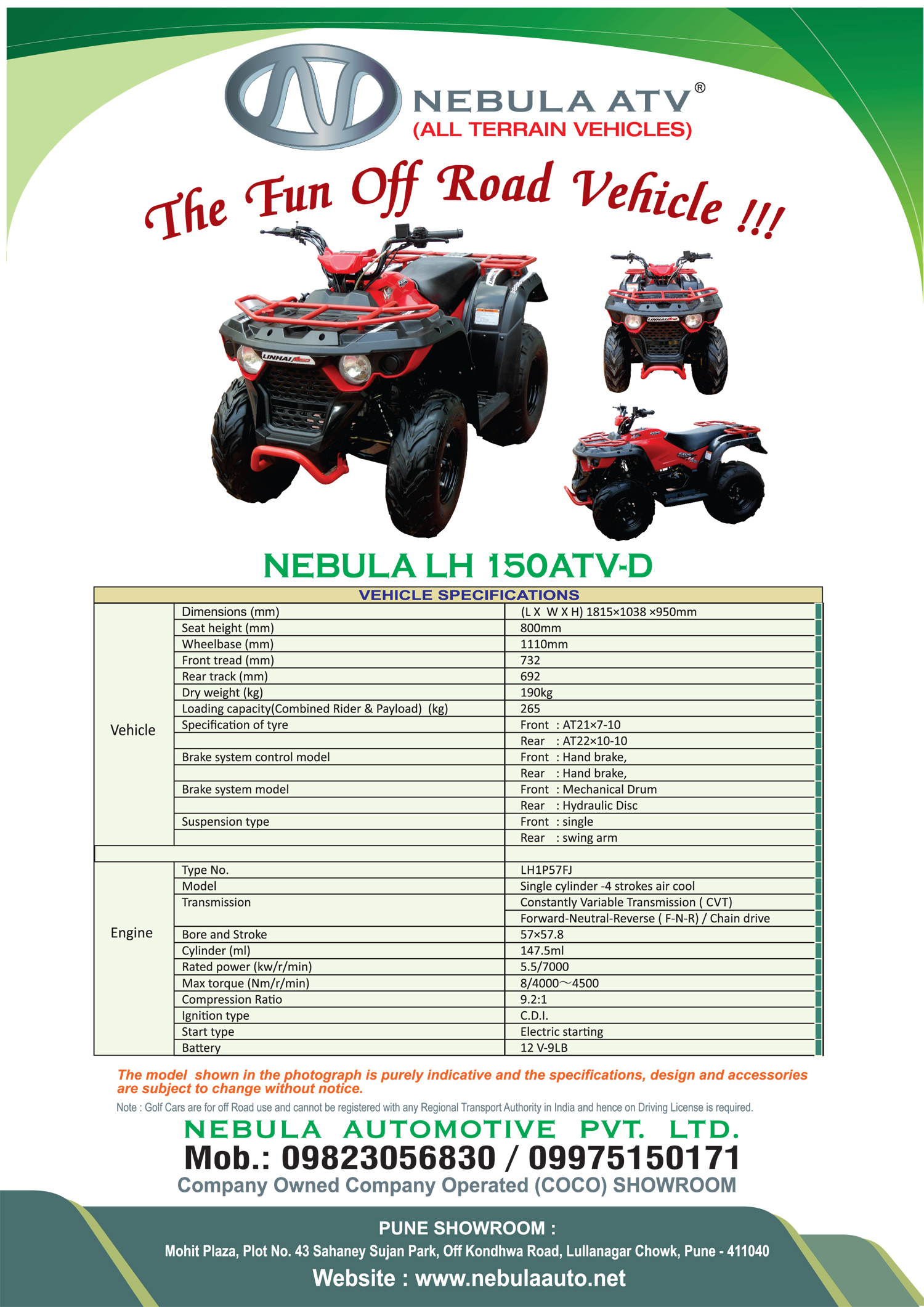

LH 150ATV - D
Vehicle Specifications
Vehicle Dimensions ( mm ) ( L X W X H ) 1815 x 1038 x 950 mm
Seat Height ( mm ) 800 mm
Wheelbase ( mm ) 1110 mm
Front Tread ( mm ) 732
Rear Track ( mm ) 692
Dry weight ( kg ) 190 kg
Loading capacity( Combined Rider & Payload ) ( kg ) 265
Specification of tyre Front : AT21 x 7 - 10
Rear : AT22 x 10 - 10
Max torque Nm / r / min Front : Hand brake
Rear : Hand brake
Brake System Model Front : Mechanical Drum
Rear : Hydraulic Disc
Suspension Type Front : Single
Rear : Swing Arm
Fuel Capacity 16 L

Engine Type No. LH1P57FJ
Model Single cylinder - 4 strokes air cool
Transmission Constantly Variable Transmission ( CVT )
Forward - Neutral - Reverse ( F - N - R) / Chain drive
Bore and Stroke 57 x 57.8
Cylinder ( ml ) 147.5 mI
Rated power ( kw / r / min ) 5.5 / 7000
Max torque ( Nm / r / min ) 8 / 4000 ~ 450 0
Compression Ratio 9.2 : 1
Ignition Type C.D.I
Start Type Electric Starting
Battery 12 V - 9LB

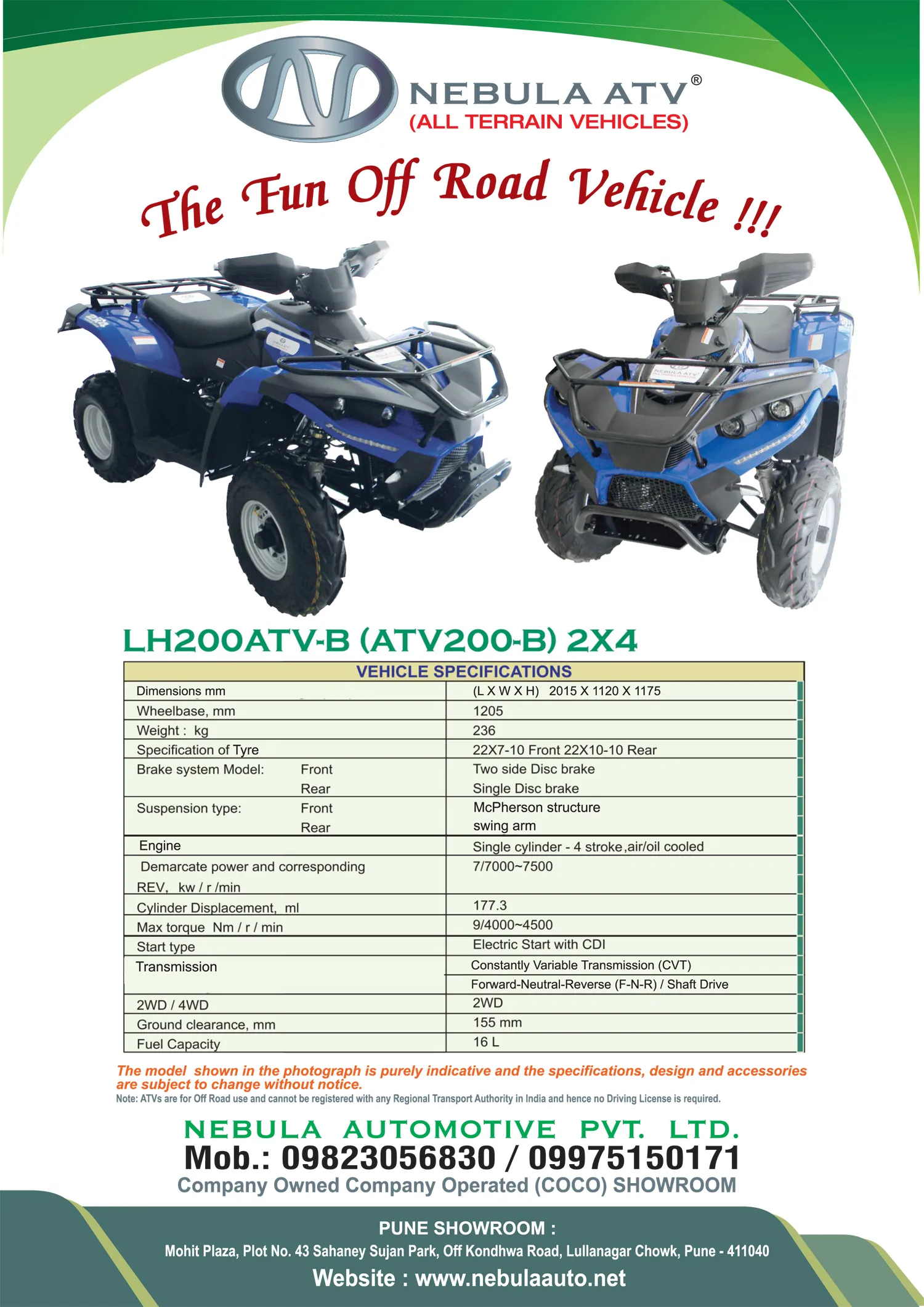

LH200ATV - B
Vehicle Specifications
Dimensions mm ( L X W X H ) 2015 X 1120 X 1175
Wheelbase, mm 1205
Weight : kg 236
Specification of Tyre 22 X 7 - 10 Front 22 X 10 - 10 Rear

Brake System Model

Front
Rear
Two side Disc Brake
Single Disc Brake
Suspension Type Front
Rear
McPherson Swing arm
Swing Arm
Engine Single cylinder - 4 stroke, air / oil cooled
Demarcate power and corresponding REV, kw / r / min 7 / 7000 - 7500
Cylinder Displacement, ml 177.3
Max torque Nm / r / min 9 / 40004500
Start Type Electric Start with CDI
Transmission Constantly Variable Transmission ( CVT )
Forward - Neutral-Reverse ( F - N - R ) / Shaft Drive
2WD / 4WD 2WD
Ground Clearance, mm 155 mm
Fuel Capacity 16 L

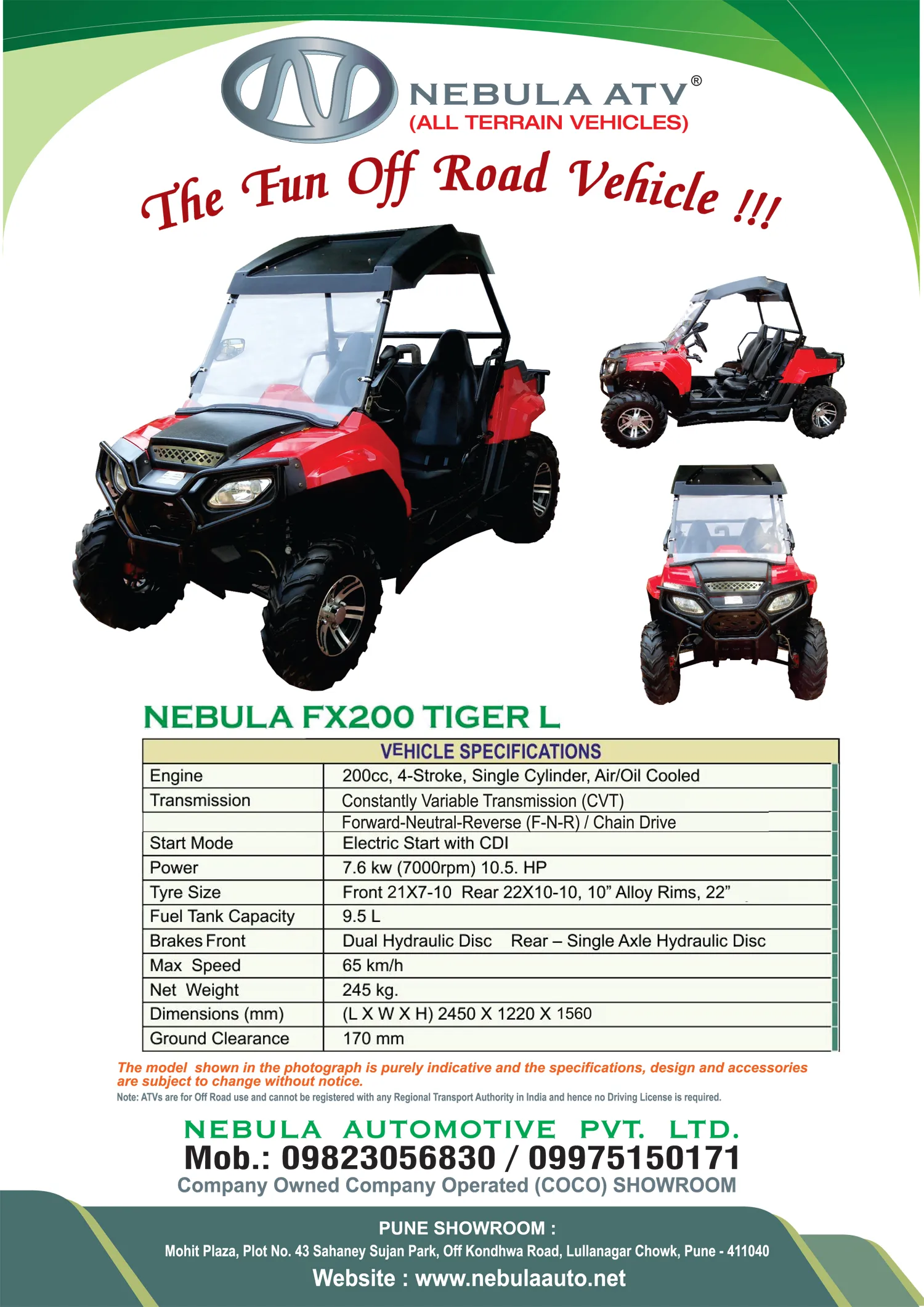

FX200 TIGER L
Vehicle Specifications
Engine 200cc, 4 - Stroke, Single Cylinder, Air / Oil Cooled
Transmission Constantly Variable Transmission ( CVT )
  Forward - Neutral-Reverse ( F - N - R ) / Chain Drive
Start Mode Electric Start with CDI
Power 7.6 kw ( 7000rpm ) 10.5. HP
Tyre Size Front 21 X 7 -10 Rear 22 X 10 -10, 10" Alloy Rims, 22"
Fuel Tank Capacity 9.5 L
Brakes Front Dual Hydraulic Disc Rear - Single Axle Hydraulic Disc
Max Speed 65 km / h
Net Weight 245 kg.
Dimensions ( mm ) ( L X W X H ) 2450 X 1220 X 1560
Ground Clearance 170 mm

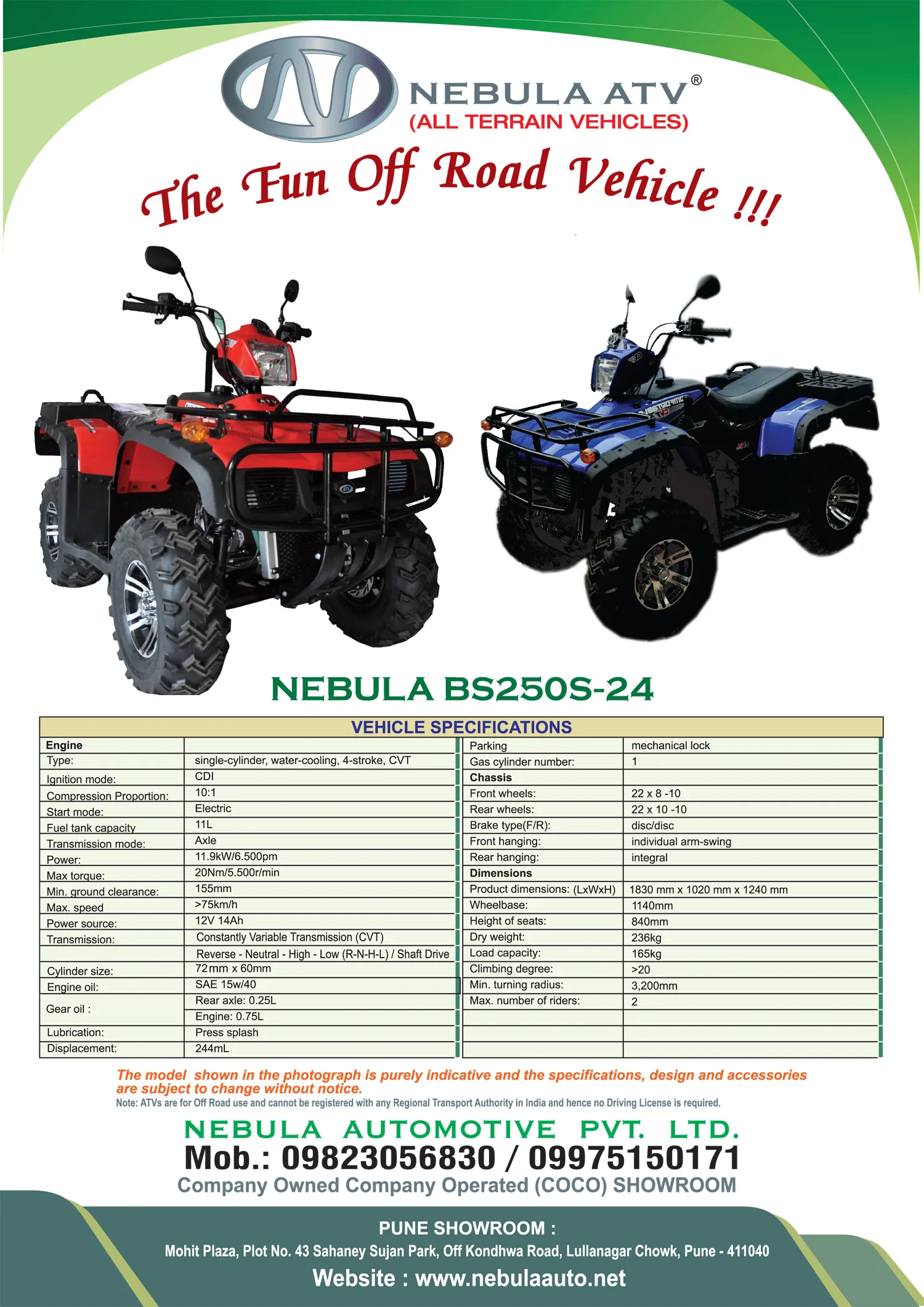

BS250S - 24
Vehicle Specifications
Engine     Parking Mechanical Lock
Type Single - Cylinder, water - cooling, 4 - stroke, CVT Gas Cylinder No. 1
Ignition Mode CDI Chassis
Compression Proporation 10 : 1 Front Wheels 22 X 8 - 10
Start Mode Electric Rear Wheels 22 X 10 - 10
Fuel tank capacity 11L Brake Type ( F / R ) disc / disc
Transmission Mode Axle Front Hanging Individual Arm - Swing
Power 11.9 kW / 6.500pm   Rear Hanging Integral
Max Torque 20 Nm / 5.500 r / Min   Dimension
Min. Ground Clearance 155mm   Product Dimension ( L X W X H ) 1830 mm X 1020 mm X 1240 mm
Max. Speed > 75 km / h   Wheelbase 1140 mm
Power Source 12 V 14 Ah   Height of Seats 840 mm
Transmission Constantly Variable Transmission ( CVT )   Dry Weight 236 Kg.
  Reverse - Neutral - High - Low ( R - N - H - L ) / Shaft Drive   Load Capacity 165 Kg.
Cylinder Size 72 mm X 60 mm   Climbing Degree > 20
Engine Oil SAE 15 w / 40   Min. Turning Radius 3.200 mm
Gear Oil Rear Axle : 0.25 L   Max. No. of Riders 2
Engine : 0.75 L
Lubrication Press Splash
Displacement 244 mL

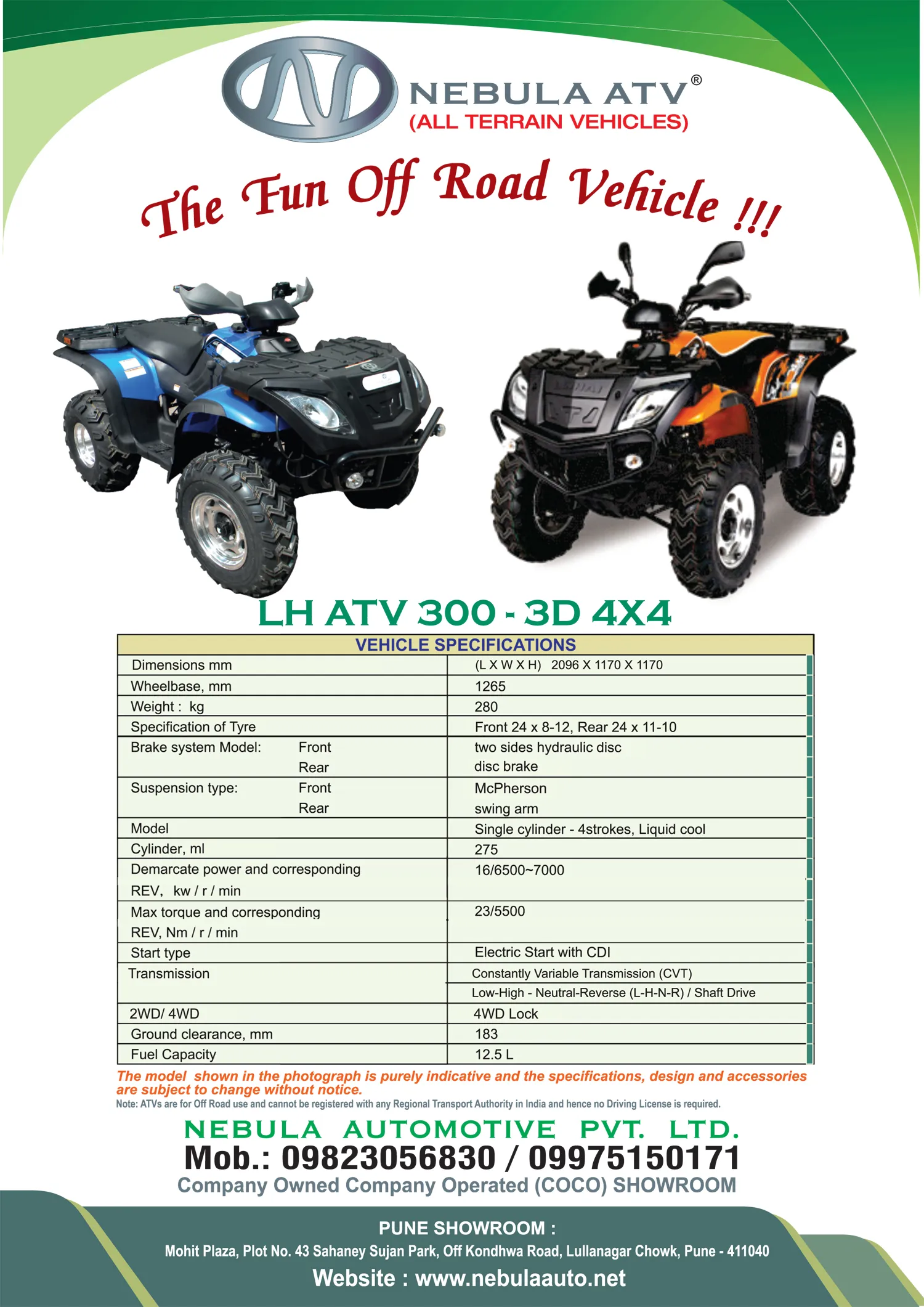

LH 300ATV
Vehicle Specifications
Dimensions mm ( L X W X H ) 2096 X 1170 X 1170
Wheelbase, mm 1265
Weight : kg 280
Specification of Tyre Front 24 x 8 -12, Rear 24 x 11 - 10
Brake System Model Front
Rear
Two sides hydraulic disc
Disc Brake
Suspension Type Front
Rear
McPherson Swing arm
Swing Arm
Model Single cylinder - 4strokes, Liquid cool
Cylinder, ml 275
Demarcate power and corresponding REV, kw / r / min 16 / 6500 - 7000
Max torque and corresponding REV, Nm / r / min 23 / 5500
Start Type Electric Start with CDI
Transmission Constantly Variable Transmission (CVT)
Low-High - Neutral-Reverse ( L - H - N - R ) / Shaft Drive
2WD / 4WD 4WD Lock
Ground clearance, mm 183
Fuel Capacity 12.5 L

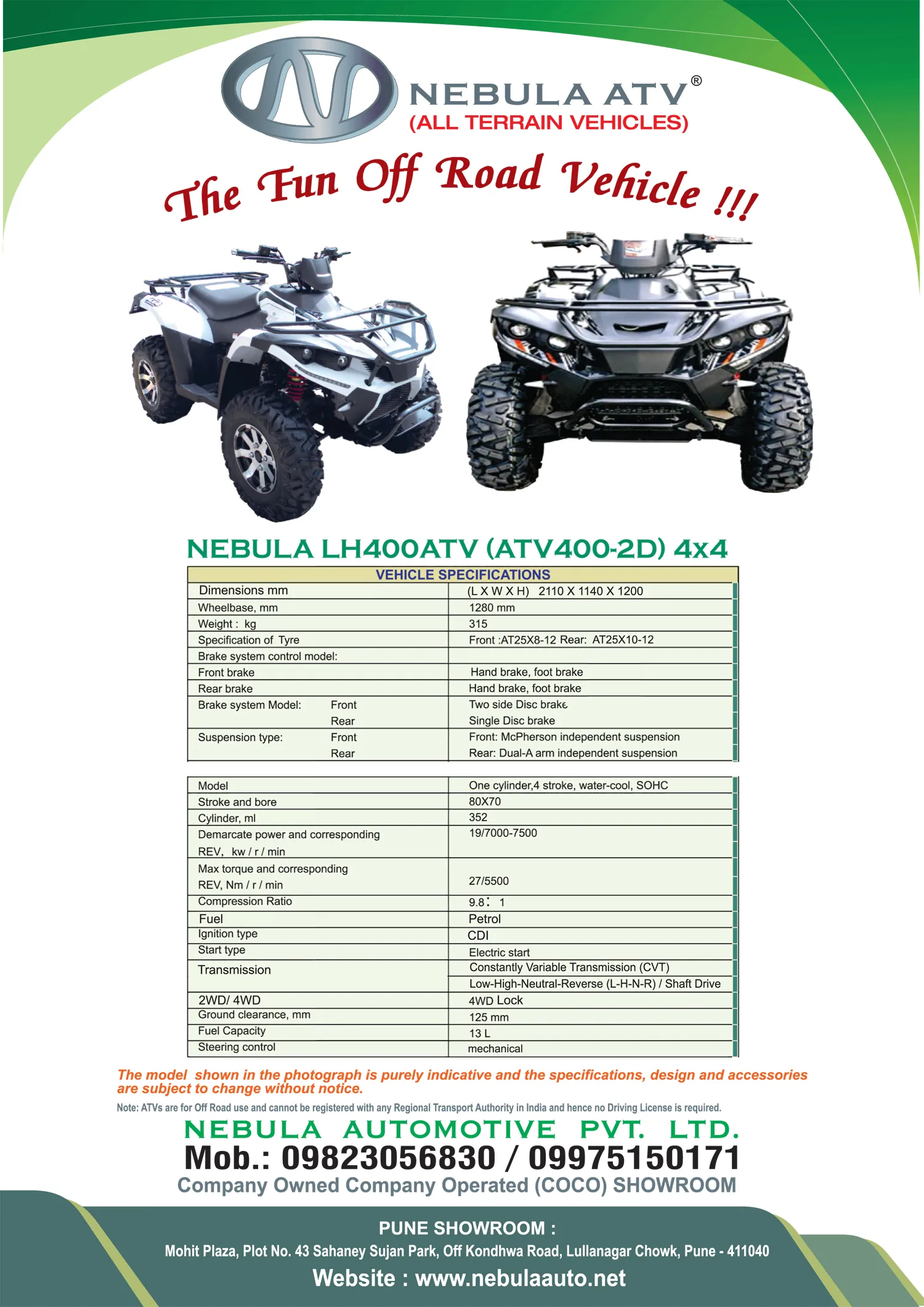

LH 400ATV-2D
Vehicle Specifications

Dimensions mm

( L X W X H ) 2110 X 1140 X 1200

Wheelbase, mm

1280 mm

Weight : kg

315

Specification of Tyre

Front : AT25 X 8 -12 Rear : AT25 X 10 -12

Brake system control model :

Front Brake
Rear Brake

Hand brake, foot brake

Hand brake, foot brake

Brake system Model :

Front

Rear

Two side Disc brake
Single Disc brake

Suspension Type :

Front

Rear

Front : McPherson independent suspension
Rear : Dual-A arm independent suspension

Model One cylinder, 4 stroke, water - cool, SOHC
Stroke and bore 80 X 70
Cylinder, ml 352
Demarcate power and corresponding REV, kw / r / min 19 / 7000 - 7500
Max torque and corresponding REV, Nm / r / min 27 / 5500
Compression Ratio 9.8 : 1
Fuel Petrol
Ignition Type CDI
Start Type Electric Start
Transmission Constantly Variable Transmission ( CVT )
Low - High - Neutral - Reverse ( L - H - N - R ) / Shaft Drive
2WD / 4WD 4WD Lock
Ground clearance, mm 125 mm
Fuel Capacity 13 L
Steering Control Mechanical

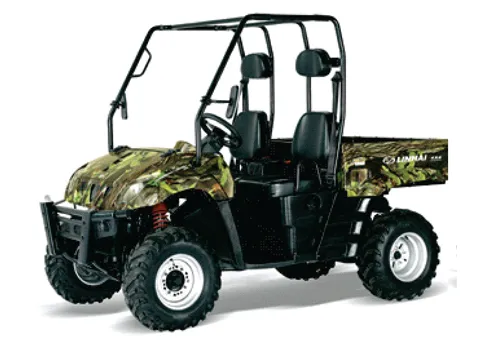

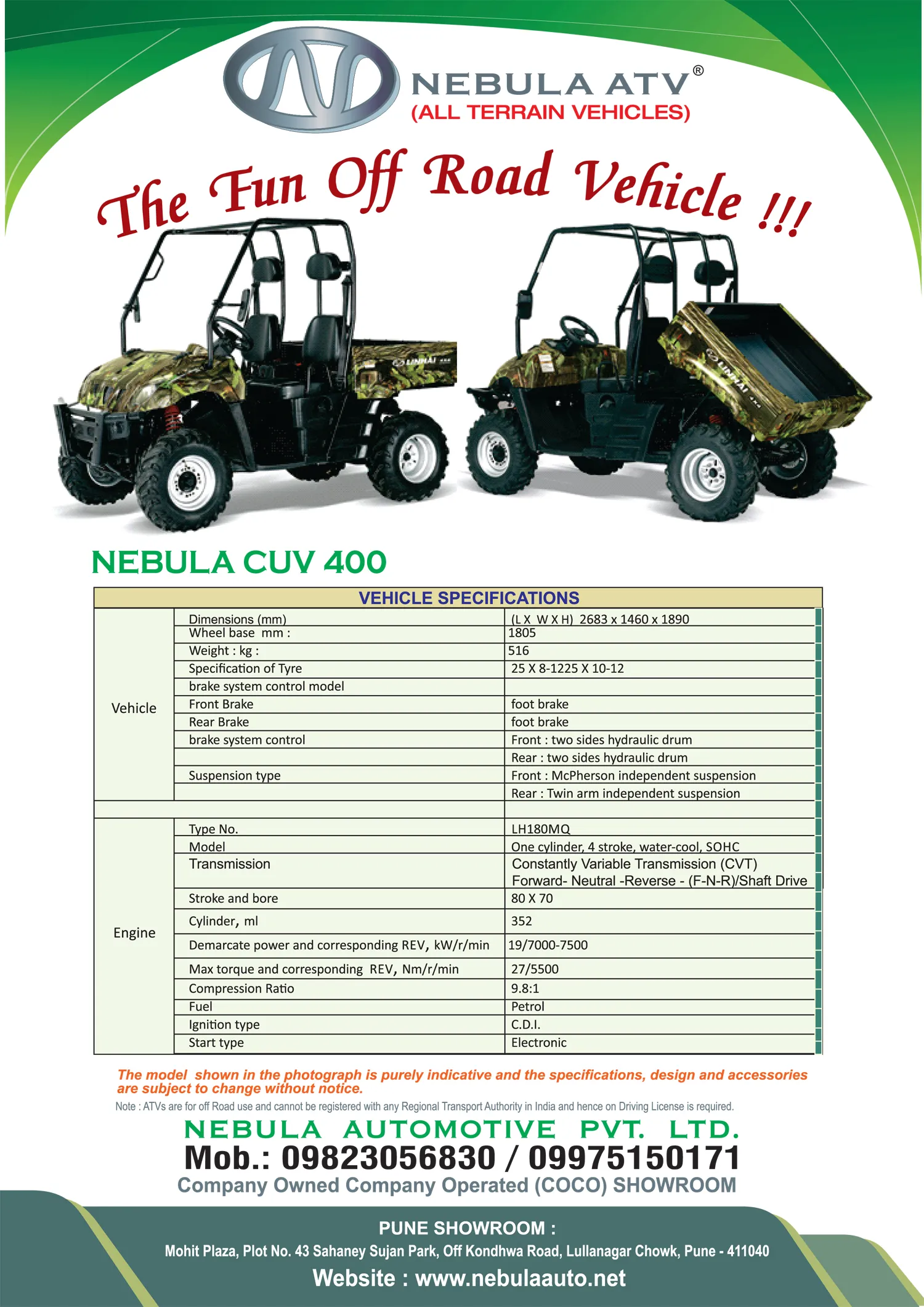

CUV 400
Vehicle Specifications
Vehicle Dimensions ( mm ) ( L X W X H ) 2683 x 1460 x 1890
Wheel base mm 1805
Weight : kg 516
Specification of Tyre 25 X 8 -1225 X 10 -12
Brake system control model
Front Brake Foot Brake
Rear Brake Foot Brake
Brake System Control Front : Two sides hydraulic drum
Rear : Two sides hydraulic drum
Suspension Type Front : McPherson independent suspension
Rear : Twin arm independent suspension

Engine Type No. LH180MQ
Model One cylinder, 4 stroke, water-cool, SOHC
Transmission Constantly Variable Transmission ( CVT ) I
Forward - Neutral - Reverse - ( F - N - R ) / Shaft Drive
Stroke and Bore 80 X 70
Cylinder, ml 352
Demarcate power and corresponding REV, kW / r / min 19 / 7000 - 7500
Max torque and corresponding REV, Nm / r / min 27 / 5500
Compression Ratio 9.8:1
Fuel Petrol
Ignition Type C.D.I.
Start Type Electronic

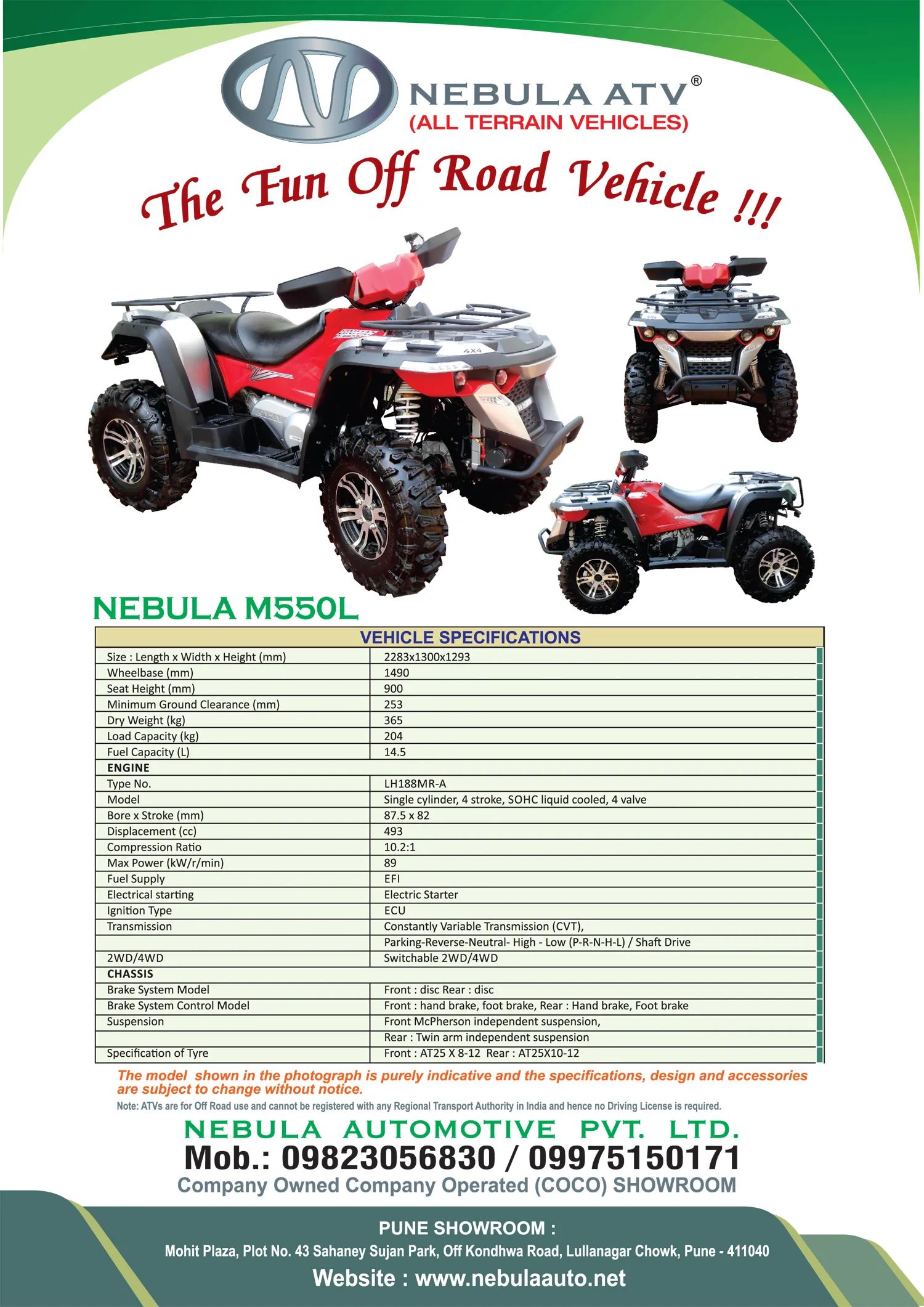

M550L
Vehicle Specifications
Size : Length x Width x Height (mm) 2283 x 1300 x 1293
Wheelbase (mm) 1490
Seat Height (mm) 900
Minimum Ground Clearance (mm) 253
Dry Weight (kg) 365
Load Capacity (kg) 204
Fuel Capacity (L) 14.5
ENGINE
Type No. LH188MR - A
Model Single cylinder, 4 stroke, SOHC liquid cooled, 4 valve
Bore x Stroke (mm) 87.5 x 82
Displacement (cc) 493
Compression Ratio 10.2:1
Max Power (kW/r/min) 89
Fuel Supply EFI
Electrical starting Electric Starter
Ignition Type ECU
Transmission Constantly Variable Transmission (CVT),
  Parking - Reverse - Neutral - High - Low ( P - R - N - H - L ) / Shaft Drive
2WD / 4WD Switchable 2WD / 4WD
CHASSIS
Brake System Model Front : disc Rear : disc
Brake System Control Model Front : hand brake, foot brake, Rear : Hand brake, Foot brake
Suspension Front : McPherson independent suspension,
Rear : Twin arm independent suspension
Specification of Tyre Front : AT25 X 8 -12 Rear : AT25 X 10 -12

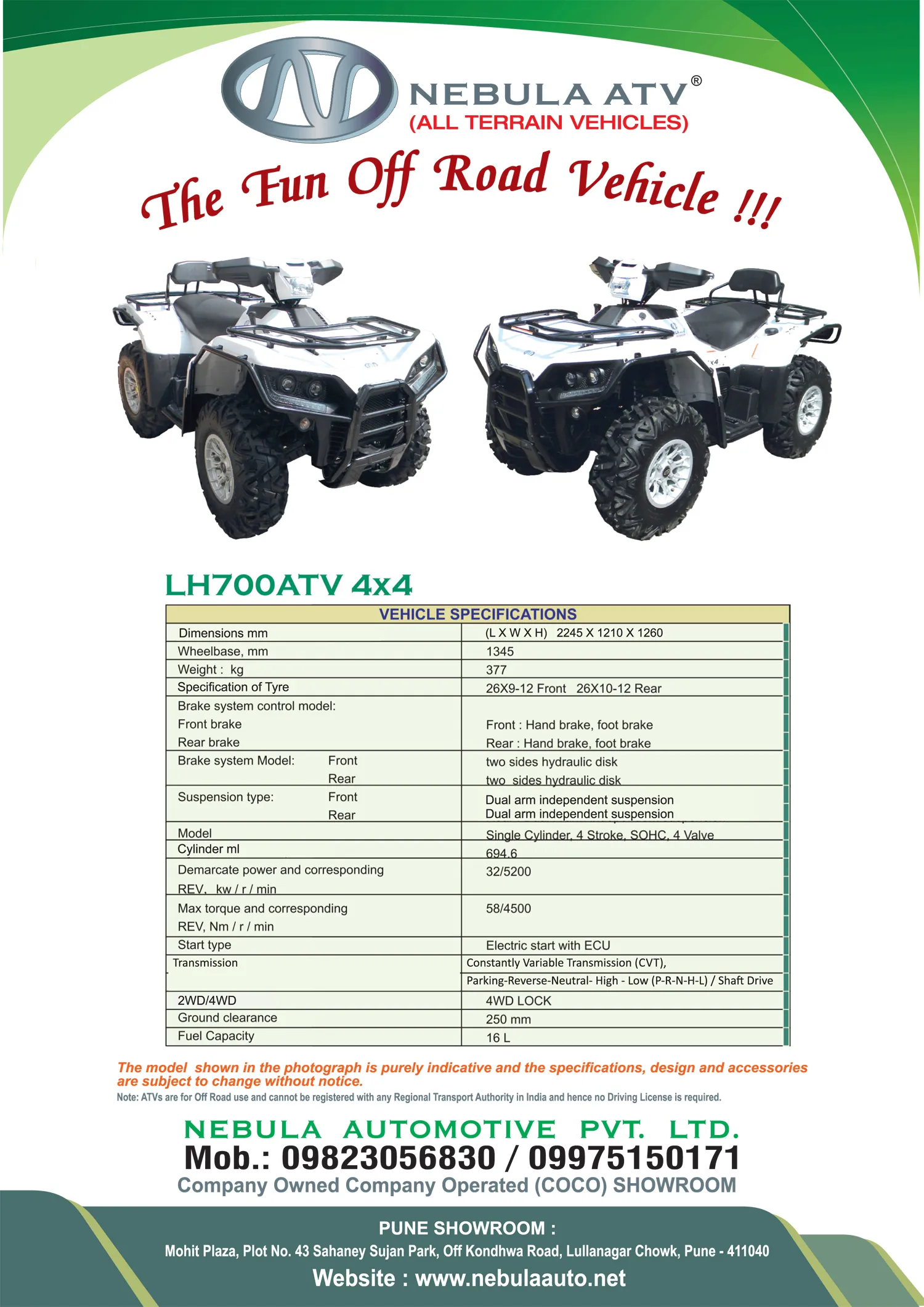

LH 700
Vehicle Specifications
Dimensions mm ( L X W X H ) 2245 X 1210 X 1260
Wheelbase, mm 1345
Weight : kg 377
Specification of Tyre 26 X 9 -12 Front 26 X 10 - 12 Rear
Brake system control model :

Front Brake
Rear Brake
Front : Hand brake, foot brake
Rear : Hand brake, foot brake
Brake system Model : Front
Rear
Two sides hydraulic disk
Two sides hydraulic disk
Suspension type : Front
Rear
Dual arm independent suspension Dual arm independent suspension
Model Single Cylinder, 4 Stroke, SOHC, 4 Valve
Cylinder ml 694.6
Demarcate power and corresponding REV, kw / r / min 32 / 5200
Max torque and corresponding REV, Nm / r / min 58 / 4500
Start type Electric start with ECU
Transmission Electric start with ECU
Constantly Variable Transmission (CVT),
Parking-Reverse-Neutral- High - Low (P - R - N - H - L) / Shaft Drive
2WD / 4WD 4WD LOCK
Ground Clearance 250 m

Fuel Capacity

16 L

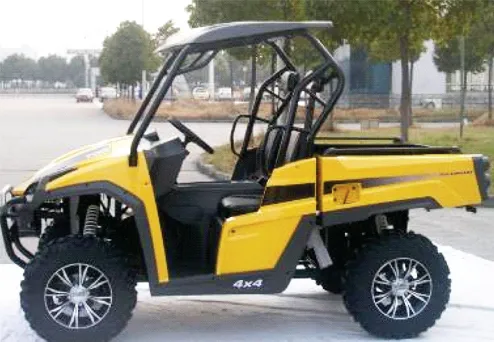

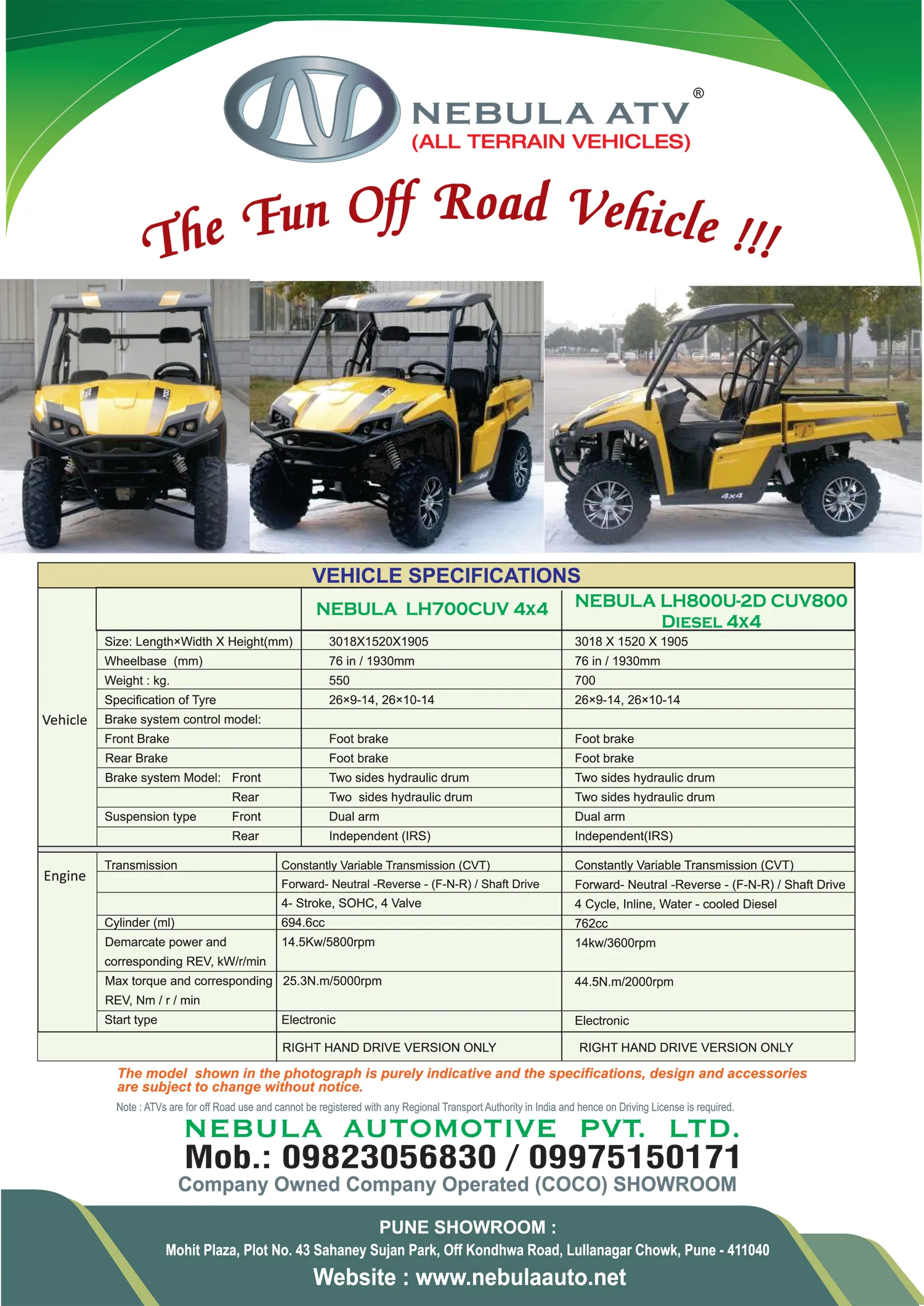

CUV700 / CUV800
Vehicle Specifications
Vehicle   NEBULA LH700CUV 4 x 4 NEBULA LH800U-2D CUV800 DIESEL 4x4
Size: Length x Width X Height ( mm ) 3018 X 1520 X 1905 3018 X 1520 X 1905
Wheelbase ( mm ) 76 in / 1930 mm 76 in / 1930 mm
Weight : kg. 550 700
Brake system control model
Front Brake Front Brake Front Brake
Rear Brake Rear Brake Rear Brake
Brake system Model Front Two sides hydraulic drum
Two sides hydraulic drum
Rear Two sides hydraulic drum Two sides hydraulic drum
Suspension type Front Dual Arm Dual Arm
Rear Independent ( IRS ) Independent ( IRS )
Vehicle Transmission Wheelbase ( mm ) Weight : kg. Constantly Variable Transmission ( CVT ) Constantly Variable Transmission ( CVT )
Forward - Neutral - Reverse - ( F - N - R ) / Shaft Drive Forward - Neutral - Reverse - ( F - N - R ) / Shaft Drive
4 - Stroke, SOHC, 4 Valve 4 Cycle, Inline, Water - cooled Diesel
Cylinder ( ml ) 694.6 cc 762 cc
Demarcate power and corresponding REV, kW/r/min 14.5 Kw / 5800 rpm 14kw / 3600 rpm
Max torque and corresponding REV, Nm / r / min 25.3N.m / 5000 rpm 44.5N.m / 2000 rpm
Start Type Electronic Electronic
Rear Two sides hydraulic drum Two sides hydraulic drum
  RIGHT HAND DRIVE VERSION ONLY RIGHT HAND DRIVE VERSION ONLY

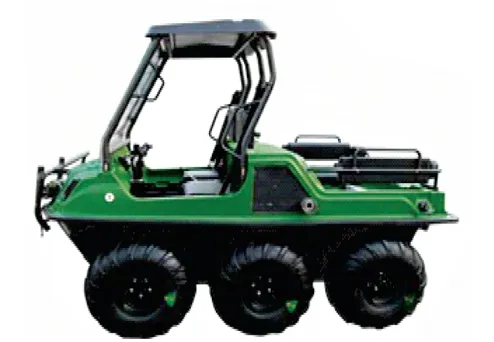

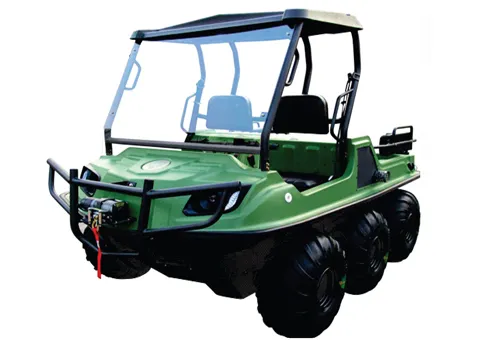

Nebula Maritime 600cc
Vehicle Specifications
Body Parameters
Dimensions 2710 x 1720 x 1980 mm
Wheel Base 730 x 730 mm
Track 1420 mm
Minimum Ground Clearance 214 mm
Complete Vehicle Kerb Mass 680 kg
Rated Load On Land 300kg (4 People On Water) : 200kg (2 People on land)
Performance Parameters
Start Mode Key
Ignition Mode E F I
Battery Specification 12V / 60Ah
Drive Mode On Land All - wheel Drive On Water : All - wheel Drive or Outboard Drive
Top Speed On Land:45 km/h On Water : 5 km/h (Tyre Stroke) or 12 km/h ( 15H P Outboard )
Minimum Turning Radius 0.71 m
Maximum Climbing Angle 32°
Approach Angle 50°
Departure Angle 46°
Brake Mode Caliper Hydraulic Brake
Tyre Specification 25 x 12 ( 11.5 ) - 9N HS
Tyre Pressure 5 - 7psi ( 34.5 - 48.3 kPa ) With Track: 3 - 5 psi ( 20.7 - 34.5 kPa )
Transmission Mode Belt and Chain Transmission
Dynamic Parameters
Engine Model SQRB2G06
Engine Type Vertical 2-Cylinder, Water-cooling, 4-Stroke, Inline DOHC
Oil - supply Mode MPI
Cylinder Diameter xStroke 2 - 72 x 72 mm
Displacement 586m1
Compression Ratio 9.5:1
Rated Power and Turning Speed 26 kW ( 5500r/min )
Max. Torque and Turning Speed 52N •m ( 3000 - 3500 r / min )
Idle Speed 1000 ± 60 r / min
Lubricating Mode Pressure and Splash Lubrication
Cooling Mode Forced Circulation and Antifreeze Coolant
Clutch System CVT
Transmission Type CVT+2 Forward Gears, Neutral, Reverse Gear
Fuel Type Petrol
Fuel Tank Capacity 38 L

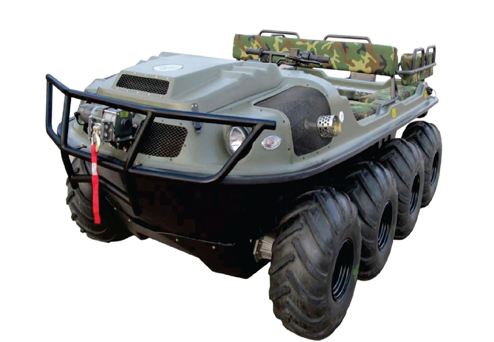

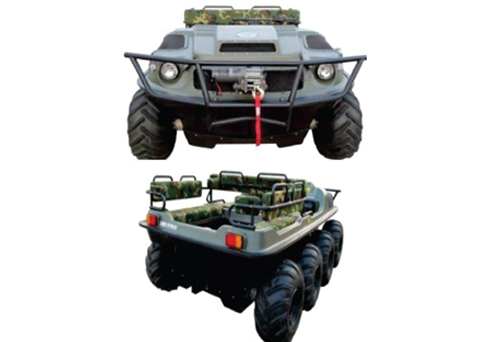

Nebula Maritime 800cc
Vehicle Specifications
Body Parameters
Dimensions 3160 x 1720 x 1150 mm
Wheel Base 670 x 670 x 670 mm
Track 1420 mm
Minimum Ground Clearance 180 mm
Complete Vehicle Kerb Mass 750 kg
Rated Load On Land 300 kg ( 4 People )
On Water 500 kg ( 6 People )
Performance Parameters
Start Mode Key
Ignition Mode EFI
Battery Specification 12V / 60Ah
Drive Mode On Land All - wheel Drive On Water: All - wheel Drive or Outboard Drive
Top Speed On Land :45km/h On Water : 5km/h (Tyre Stroke) or 12km/h ( 15H P Outboard )
Minimum Turning Radius 0.71 m
Maximum Climbing Angle 32°
Approach Angle 54°
Departure Angle 57°
Brake Mode Caliper Hydraulic Brake
Tyre Specification 25 x 12 ( 11.5 ) - 9N HS
Tyre Pressure 5 - 7psi (34.5 - 48.3 kPa) With Track: 3 - 5psi (20.7 - 34.5kPa)
Transmission Mode Belt and Chain Transmission
Dynamic Parameters
Engine Model SQR372
Engine Type Vertical 2 - Cylinder, Water - cooling, 4 - Stroke, Inline DOHC
Oil - supply Mode M P I
Cylinder Diameter xStroke 3 - 72 x 66.5mm
Displacement 812m1
Compression Ratio 9.5:1
Rated Power and Turning Speed 39kW (6000r / min) Max.
Torque and Turning Speed 70N.m (3500 - 4000r / min)
Idle Speed 900 ± 50r / min
Lubricating Mode Pressure and Splash Lubrication
Cooling Mode Forced Circulation and Antifreeze Coolant
Clutch System CVT
Transmission Type CVT + 2 Forward Gears, Neutral, Reverse Gear
Fuel Type Petrol
Fuel Tank Capacity 38L

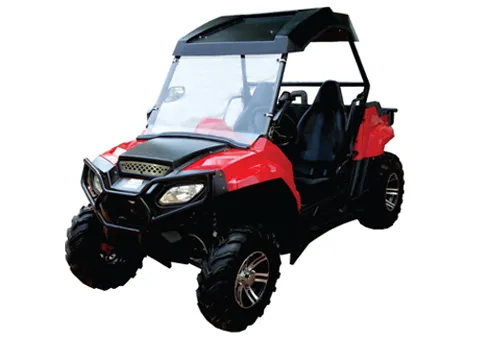

Xtreme 800CC 2 x 4 / 4 x 4 - 2 SEATER
Vehicle Specifications
Dimensions mm (L X W XH) 3130 x 1640 x 1530
Wheelbase 2180 mm
Front Track 1360 mm
Rear Track 1360 mm
Ground Clearance 240 mm
Type L3, 12valves, DOHC
Engine Capacity 800 cc
Bore X Stroke 72 mm X 66.5 mm
Compression Ratio 9.5 / 1
Max out put Power 39 kw / 6000rpm ( EEC 14.9 kw / 6000 rpm )
Max Torque 70 Nm / 3500 - 4000N.m / r / min
Starting Electric, < 10s
Ignition Electronic Multipoint Injection
Transmission 4 - MT 2WD / 5MT 4WD With Reverse
Maximum Load Double seats / 250 Kg
Fuel Tank 24 L
Climbing 25° - 30°
Top Speed 85 KM/h ( or limited at customers request )
Front / Rear Brake Hydraulic disc, right foot control
Front / Rear Tyre AT27 X 8 - 14 / AT27 X 8 - 14
Final Drive Shaft Drive

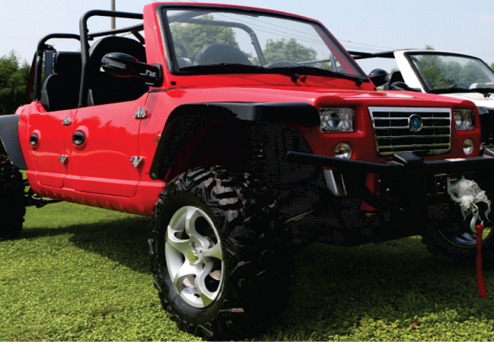

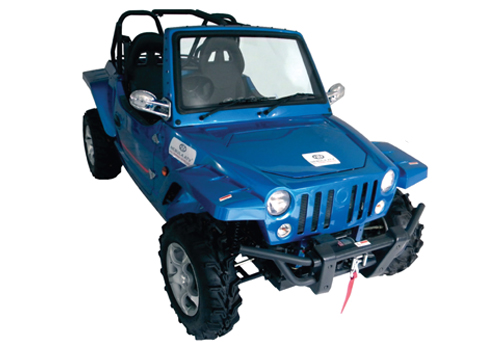

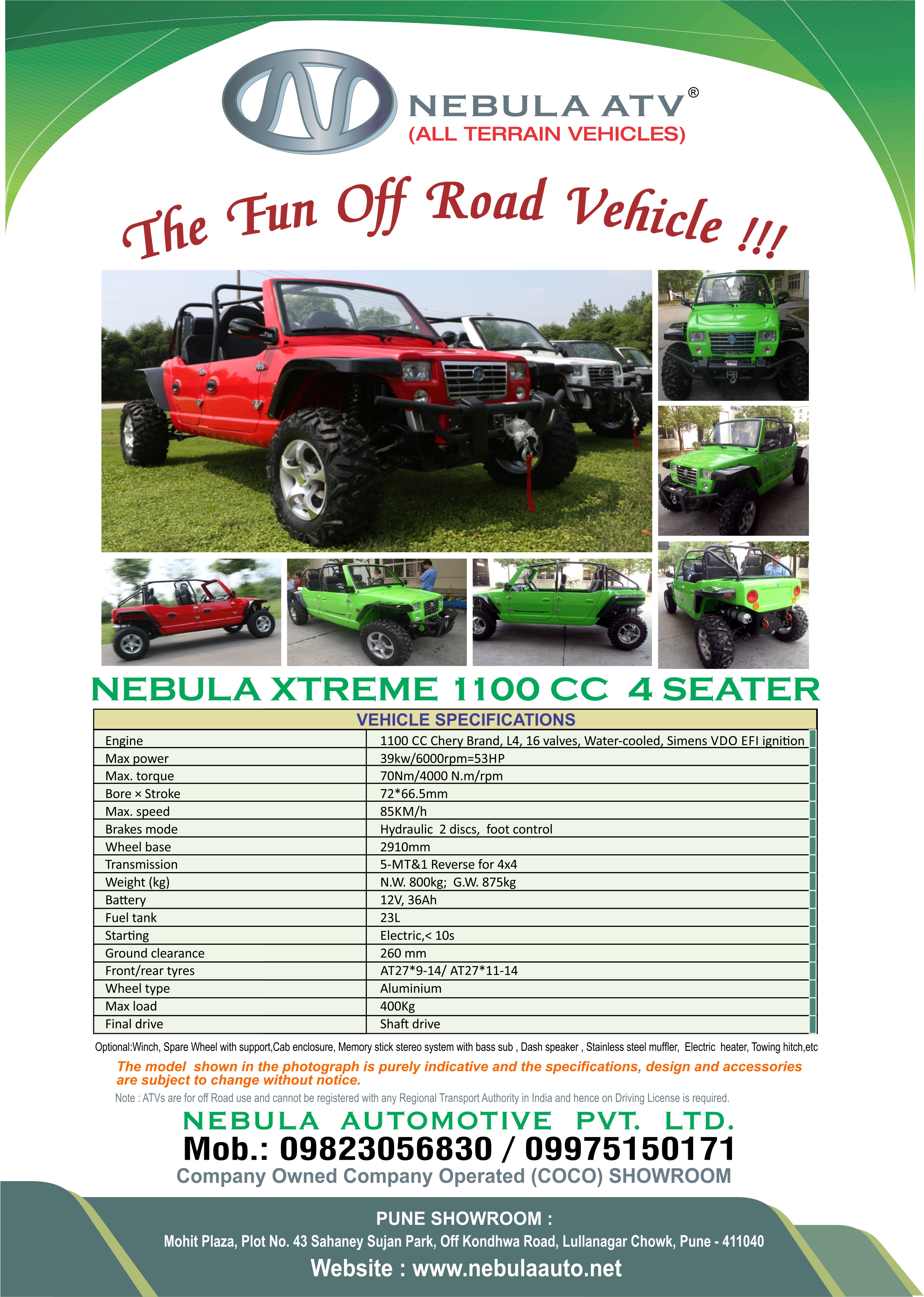

Xtreme 11004x4
Vehicle Specifications
Engine 1100 CC Chery Brand, L4, 16 valves, Water - cooled, Simens VDO EFI ignition
Max Power 39 kw / 6000 rpm = 53HP
Max. Torque 70 Nm / 4000 N.m / rpm
Bore. Stroke 72 * 66.5 mm
Max. Speed 85 KM / h
Brakes Mode Hydraulic 2 discs, foot control
Wheel Base 2910 mm
Transmission 5 - MT & 1 Reverse for 4 x 4
Weight (kg) N.W. 800 kg; G.W. 875 kg
Battery 12 V, 36 Ah
Fuel Tank 23 L
Starting Electric, < 10s
Ground Clearance 260 mm
Front/rear Tyres AT27 * 9 -14 / AT27 * 11 - 14
Wheel Type Aluminium
Max Load 400 Kg
Final Drive Shaft Drive
